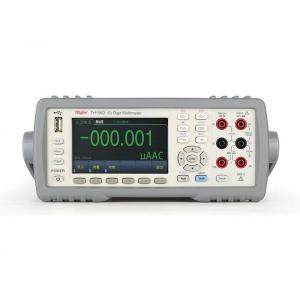

4.3-inch LCD color display, Chinese and English menu
6 1/2 bit 1199999 digits reading (TH1963)
5 1/2 digit 119999 digits reading (TH1953)
Test speed up to 1000 / s
Small size, front and rear input terminal, easy to shelve
Histogram, bar graph, trend chart display
AC low frequency signal can be tested down to 3Hz
Capacitance test function
Up to 5V diode test voltage
Stores data up to 10,000
Fast Chinese and English help
Production line workbench
Maintenance workbench
Teaching laboratory
Automated test equipment
| Display | 4.3-inch LCD color display | |||
| Display Digits | TH1963 | 1199999 digits reading | ||
| Measurement Parameters | DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature | |||
| Display Mode | Direct reading, histogram, bargraph, trendchart | |||
| Measurement Speed | Upto1000times/s | |||
| Math Function | Reset function, Min/Max/Average/Standard deviation, dB, dBm | |||
| Common Features | Range | Auto/Manual | ||
| Trigger mode | LOCAL: AUTO/SINGLE/EXT.REMOTE:IMMEDIATE/BUS/EXT | |||
| Reading hold | Yes | |||
| Limit measurement | HI, Lo and IN(PASS), with sound beep | |||
| Technical Index | Uncertainty(%ofreading+%ofrange), TCAL=25°C | |||
| Parameters | Range/TestRange | Frequency | Highest annual accuracy TCAL±5°C |
Highest temperature coefficient/°C |
| DC Voltage | 100.0000mV-1000.000V | 0.0035+0.0005 | 0.0005+0.0001 | |
| True RMS AC Voltage | 100.000mV-750.000V | 3-5Hz | 1.00+0.03 | 0.100+0.003 |
| 5-10Hz | 0.35+0.03 | 0.035+0.003 | ||
| 10Hz-20kHz | 0.06+0.03 | 0.005+0.003 | ||
| 20-50kHz | 0.12+0.05 | 0.011+0.005 | ||
| 50-100kHz | 0.60+0.08 | 0.060+0.008 | ||
| 100-300kHz | 4.00+0.50 | 0.200+0.020 | ||
| DC Resistance | 10-100M Testcurrent: 10mA-500nA |
0.010+0.001 | 0.0006+0.0001 | |
| DC Current | 100uA-100mA | 0.050+0.005 | 0.0020+0.0005 | |
| 1A | 0.100+0.010 | 0.0050+0.0010 | ||
| 3A | 0.200+0.020 | 0.0050+0.0020 | ||
| 10A | 0.120+0.010 | 0.0050+0.0010 | ||
| AC Current | 100A-1A | 3kHz-5kHz | 0.10+0.04 | 0.015+0.006 |
| 5kHz-10kHz | 0.10+0.04 | 0.030+0.006 | ||
| 3A | 3Hz-5kHz | 0.23+0.04 | 0.015+0.006 | |
| 5kHz-10kHz | 0.23+0.04 | 0.030+0.006 | ||
| 10A | 3Hz-5kHz | 0.15+0.04 | 0.015+0.006 | |
| 5kHz-10kHz | 0.15+0.04 | 0.030+0.006 | ||
| Frequency | 3Hz-10Hz | 0.1 | 0.0002 | |
| 10Hz-100Hz | 0.03 | 0.0002 | ||
| 100Hz-1MHz | 0.01 | 0.0002 | ||
| Square wave | 0.01 | 0.0002 | ||
| Diode | 5V, Test current:1mA | 0.010+0.030 | 0.0010+0.0020 | |
| Breakover | 1k, Test current:1mA | 0.010+0.030 | 0.0010+0.0020 | |
| Capacitance | 1.0000nF | 1.0+0.5 | 0.02 | |
| 10.000nF-1.0000mF | 0.5+0.1 | 0.02 | ||
| 10.000mF | 1.0+0.5 | 0.02 | ||
| Temperature | PT100(DIN/IEC 751) | ±0.05°C | ||
| 5 k Thermistor | ±0.10°C | |||
| Standard | ||||||
| Accessories name | Model | |||||
| USB Cable | TH26017 | |||||
| Multimeter Test Cable | TH2 | |||||
