China Electrical Capacitance Bridge Tester Multiple Interfaces Contact Inspection Function wholesale

Electrical Capacitance Bridge Tester Multiple Interfaces Contact Inspection Function

Ask Latest Price

Video Channel

Data Storage :1000 Groups

Dimensions :200mm x 100mm x 50mm

Display :LCD

Frequency Range :100Hz-100kHz

Interface :USB

Measurement Accuracy :±0.2%

Measurement Speed :2ms

Operating Temperature :0℃-50℃

Power Supply :DC 9V

Product Name :Handheld LCR Meter

Relative Humidity :≤85%

Test Signal Level :0.1Vrms-1Vrms

Test Signal Waveform :Sine Wave

Weight :500g

Contact Now

Add to Cart

View Product Description

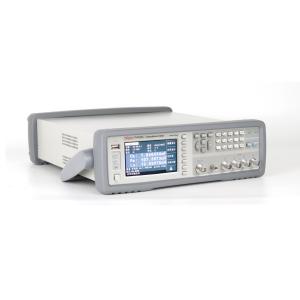

TH2638A Cpacitance Meter with Multiple Interfaces & Contact Inspection Function

A Capacitance Tester is an electronic device specifically designed to measure the capacitance of capacitors. It is widely used in various industries and applications that involve the testing and characterization of capacitive components. Here is an overview of the Capacitance Tester's introduction, features, functions, and applications:

Features

■ 4.3 inch TFT LCD display

■ Selectable Chinese and English operation interface

■ Max. test frequency: 1MHz

■ Highest test speed: 2.3ms/time

■ Basic test accuracy : ±0.07%

■ Loss factor: ±0.0005

■ V, I test signal level monitor function

■ Low impedance measurement, signal level compensation function

■ Built-in 11-bin comparator

■ Internal file storage and external U disk file storage

■ Test data can be directly saved in U disk

■ Screen shot can be saved in U disk

■ Compatible with SCPI commands

■ RS232C, USB CDC, LAN, HANDLER, GPIB interfaces

■ Manipulator interface and scanner interface

■ Contact inspection function

■ Synchronizing signal source

■ Offset function in 1MHz test frequency (±1, ±2%)

Electrical Capacitance Bridge Tester Multiple Interfaces Contact Inspection Function
